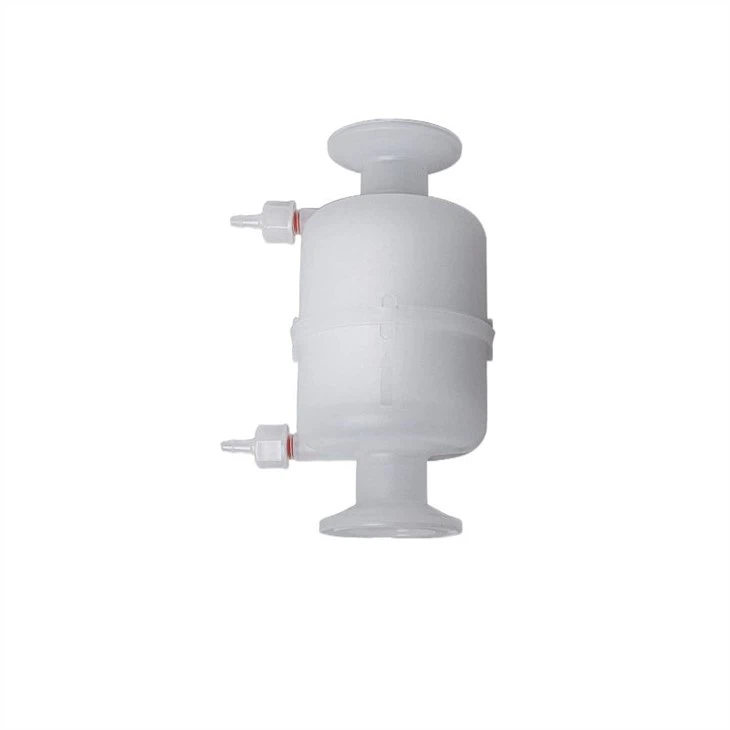

Sterilization Filter

Product Advantage

Verified reliable bacteria interception ability

High flow rate and high interception efficiency

Multiple connector options available

Good chemical compatibility (pH 1~14)

Excellent handling capability for substances prone to clogging (culture medium solutions, etc.) - 100% integrity tested



Application Area

●Cell culture media sterilizing filtration

●Buffer solution filtration

●Intermediate and raw material filtration

●Pre-filtration before column/ultrafiltration

●Sterilizing filtration of final products



Model

Filter Type

K=capsule filter

F= disc filter



Membrane Type

S=hydrophilic PES

V=hydrophilic PVDF

M=hydrophobic PES

P=hydrophobic PES



Capsule filter

Membrane layer

S=single layer

D=double layer



Filter Size

01=1inch

02=2inch

04=4inch

05-5inch

10=10inch

20=20inch

50=50mm



Membrane Pore Size

010=0.10um

022=0.22um

045=0.45um

402=0.45+0.22um

202=0.22+0.22um

201=0.22+0.10um



Connector Type

S=TC25 connector

T=TC50 connector

C=3/8 hose

N=6-14mhose



Package

Specification: 1pc/pkg



Technical Parameter

Type	Disc	Capsule filter
Filter length	50mm	1"	2"	4“	5"	10"	20"
Filtration precision	0.10μm、0.22μm、0.45μm、0.45+0.22μm、0.22+0.22μm、0.22+0.10μm
Connector type	6-14mm hose	6-14mm hose	TC50、TC25、3/8 hose	TC50、TC25、3/8 hose	TC50	TC50	TC50
Filtration area	19.6cm2	400cm2	0.11m2	0.22m2	0.3m2	0.6m2	1.2m2



Material Information

Filter material
Filter membrane	hydrophilic PES、hydrophilic PVDF、hydrophobic PES、hydrophobic PTFE
Support	polypropylene（PP）
Shell/skeleton	polypropylene（PP）
vent O ring	silicon



Operate parameter

Max temperature	40℃	60℃
Max pressure	50psi@25℃	80 psi@25℃
Sterilize	45KGy gamma radiation sterilization, 126℃ high pressure steam sterilization 3 times/1h



Quality Control

Bubble point	According to different membrane material and pore size
Bacterial endotoxin	According to the method for bacterial endotoxin detection as stipulated in General Rules (1143) of the Chinese Pharmacopoeia 2020 Edition, the endotoxin content in the filtrate is determined, and the endotoxin content in the filtrate is less than 0.25EU/ml.
TOC/ conductivity	The test was conducted according to the determination method of total organic carbon in pharmaceutical water according to the General Rule of Chinese Pharmacopoeia 2020 Edition (0682) and the determination method of electrical conductivity of pharmaceutical water according to the General Rule (0681). The tested TOC value was ≤0.5mg/L and the electrical conductivity value was ≤1.3us/cm.
cleanliness	According to the lamp examination method stipulated in the General Rules of Chinese Pharmacopoeia 2020 Edition (0904), no fibers or other visible foreign matter were detected in the filtrate。
Bacterial retention ability	According to ASTM testing methods, retention testing for 107 CFU/cm2 of Pseudomonas aeruginosa (ATCC® 19146) can be conducted.
Biosafety	All materials comply with USP<88> on biosafety evaluation of VI-121 ℃ grade plastic materials
Quality system	Quality management system accredited by ISO 9001 quality system standard certification organization
