Disposable Depth Filter Systems
The disposable depth filter systems developed by Hangzhou Guidling Company is a disc-type filter element, it is a high-efficiency filter element using deep filter paperboard as the filter material, it fully meets the regulatory requirements of biopharmaceuticals and is specially designed and manufactured to remove large solids such as cells and cell debris.
Product Introduction
1. Introduction

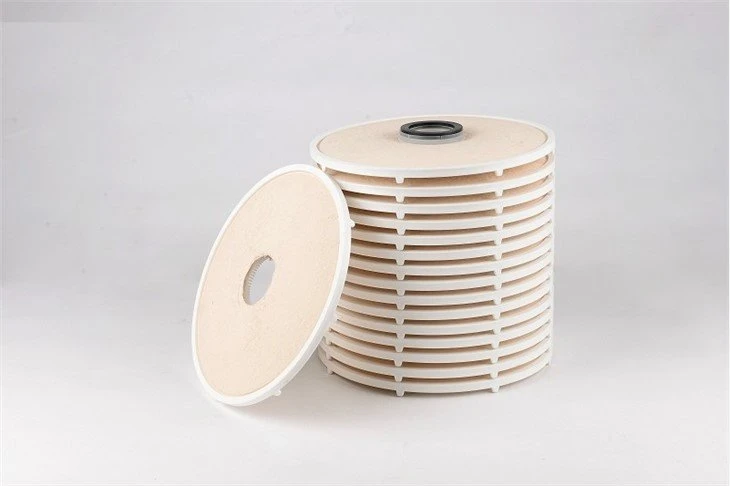

The disposable depth filter systems developed by Hangzhou Guidling Company is a disc-type filter element, it is a high-efficiency filter element using deep filter paperboard as the filter material, it fully meets the regulatory requirements of biopharmaceuticals and is specially designed and manufactured to remove large solids such as cells and cell debris. The cellulose in the filter paperboard is interwoven to form a tight three-dimensional structure, the pore size shows decreasing distribution, the turbidity of the liquid can be effectively reduced through multi-stage interception , the filter aid diatomite and positively charged resin can greatly improve its filtering ability and the removal ability of endotoxin, DNA and other impurities
The polypropylene shell and spiral snap structure are very easy to install and use, The unique design of disposable joints and disposable liquid pipeline makes it easy to connect Guidling's disposable depth filter systems with other components in the process. Capsule type plastic housing eliminates the need for stainless steel housing and post-filter cleaning steps. These features protect operators from exposure to biohazards without the need for maintenance and cleaning validation。
Liquid
2. Filter Principle
The filter paperboard of depth filter modules is mainly composed of three media: Natural plant cellulose as base frame --- Interweave to a form tight three-dimensional structure, the pore size of filtration shows increasing distribution, larger impurity particles are directly blocked on the filter surface, small particles of impurities are intercepted on different longitudinal gradients of the filter material depending on their particle size, so as to ensure a stable flow rate and great sewage capacity and membrane load.
High efficiency filter aid, diatomite--- in the process of removing impurities such as cells, cell debris and miscellaneous proteins, its internal natural porous structure and increase the membrane load of filtration.
Deep filter medium of compounded with cationic resin--- Provides a good particle adsorption effect and can effectively remove part of negatively charged host cells, nucleic acids and impurities
3.Characteristic and advantage
Performance | Advantage |
small holdup volume | Compared with traditional membrane modules and filter housings, it has a higher product recovery rate and a smaller cleaning volume after use. It can be purged forward or reverse after use. |
Good pressure resistance | Snap-type and spiral structure design, strong and durable, excellent pressure resistance |
Capsule shell structure | No need for stainless steel housing, easy to install, eliminating the hidden danger of the operator; no need for cleaning verification, single-use, reducing production costs |
Can be linearly amplified | Multi-specification design to ensure the success and flexibility of the process, complete specifications to meet the needs of process design and amplification |
Cover a small area | Disc type capsule structure, compact structure design, can be used in series with other equipment |
Carry a positive charge | Good filtration effect, can remove impurities smaller than the pore size |
Low dissolution | High purity of product material |
Compact structure | Stable flow rate, long life, low use cost |
4.Technical parameters
| Technical specifications | |
Material | Structure material |
Membrane material | Cellulose, diatomite, resin, etc |
Skeleton support layer/separation plate | Polypropylene |
Housing material | Polypropylene |
O-ring and gasket | Silicone |
Maximum working pressure difference | 2.4bar |
Maximum using temperature | 40℃ |
Inlet/outlet connection | Sanitary grade joint |
5.Product using field
Mammalian cell culture fluid
Yeast fermentation broth
E. coli lysate and refolding solution
Vaccine
Blood products
Culture medium
6.Order information
Filtration area | Filtration accuracy | Model |
25cm2 | GA-0.10-0.45um | S00025GA |
S00025GD | ||
S00025GH | ||
0.23m2 | S02300GA | |
S02300GD | ||
S02300GH | ||
1.6m2 | S16000GA | |
S16000GD | ||
S16000GH |
